PVC Coated Welded Wire Mesh

Introduction:

PVC welded wire mesh is also known as: Dip welded wire mesh. High quality welded wire, the PVC or PE, PP powder coating surface treatment after curing, has a strong adhesion, good corrosion resistance, bright color, and so on.

Material:

PVC Welded Wire Mesh is made of high quality of welded galvanized iron wire mesh, which is coated with PVC powder by automatic equipments. The coated layer has good anti-corrosive property, which is widely used in daily life.

A roll of PVC coated green welded wire mesh with square holes and smooth surface.

PWWM-01: PVC coated welded wire mesh.

Five rolls of PVC coated welded wire mesh: two rolls in green, two rolls in dark green, and one roll in black.

PWWM-02: PVC coated welded wire mesh in different colors.

Colors

Usually the color is blue, green, red and yellow. Moreover the color could be ordered according to customers' specific requirements.

Property

PVC Welded Meshes enjoy many properties, such as corrosion resistance, acid resistance, alkali resistance, aging resistance, sunshine resistance and weather resistance. Beside this kind of product has a beautiful appearance and a long service life.

Forms of corrosion resistance include electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating.

Applications

PVC Welded Mesh serves as guards in buildings and factories, as animal enclosure and wire mesh fences in agriculture; welded wire mesh also serves in horticulture industry as guards for trees and plants.

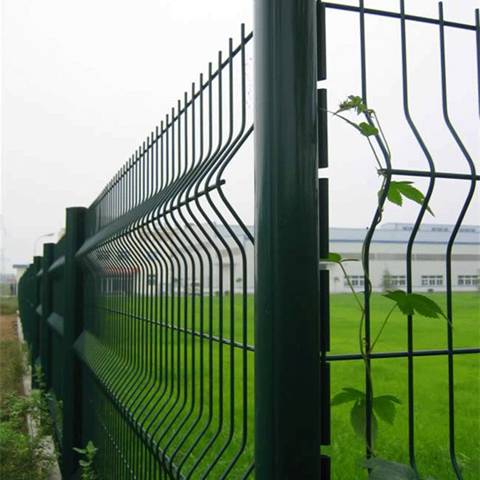

A corner of PVC coated dark green welded wire mesh fence with round post.

PWWM-03: PVC coated welded wire mesh as security fence.

A light green gate with round post is made of welded wire mesh fence.

PWWM-04: PVC coated welded wire mesh as gate of the security fence.

Many rolls of PVC coated dark green welded wire mesh are in workshop.

PWWM-05: We have large quantity of PVC coated welded wire mesh in stock.

Many rolls of PVC coated welded wire mesh fence are packed with craft paper in workshop.

PWWM-06: Package of PVC coated welded wire mesh.

Specifications

Table 1: Specifications of PVC Coated Welded Wire Mesh
Item	Wire Diameter	Mesh
PWWMS-01	2.2/2.6 mm	4" × 4"	101.6 mm × 101.6 mm
PWWMS-02	2.2/2.6 mm	4" × 3"	101.6 mm × 50.8 mm
PWWMS-03	2.0/2.5 mm	4" × 2"	101.6 mm × 50.8 mm
PWWMS-04	1.9/2.4 mm	3" × 2"	75 mm × 50.8 mm
PWWMS-05	1.9/2.4 mm	2" × 2"	50.8 mm × 50.8 mm
PWWMS-06	1.9/2.4 mm	2" × 1"	50.8 mm × 25.4 mm
PWWMS-07	1.6/2.1 mm	3" × 2"	75 mm × 50.8 mm
PWWMS-08	0.8/1.1 mm	1/2" × 1/2"	12.7 mm × 12.7 mm
PWWMS-09	0.8/1.1 mm	3/4" × 3/4"	19 mm × 19 mm
PWWMS-10	0.6/0.9 mm	1/4" × 1/4"	6.35 mm × 6.35 mm
